موتور گیر بکس سر خود زرد - اصل خارجی درجه 1
با کیفیت بالا
تکفروشی و عمده موجود است

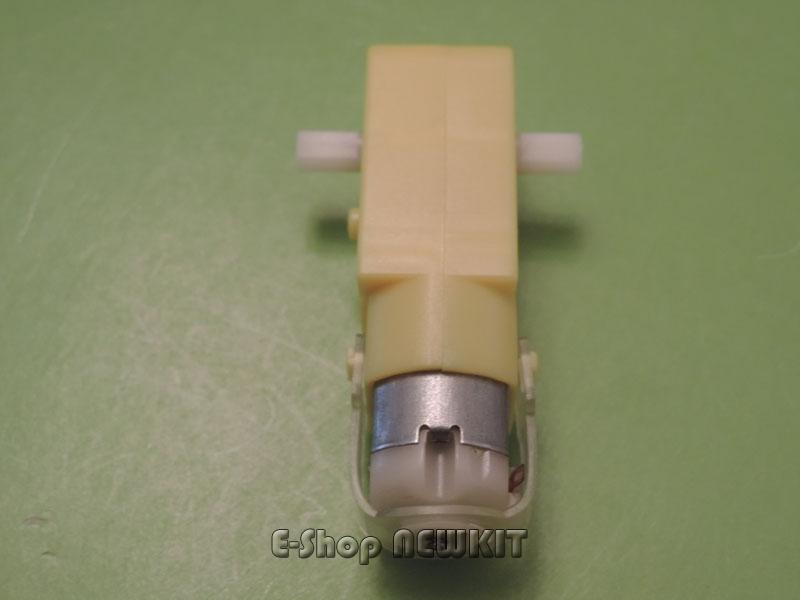

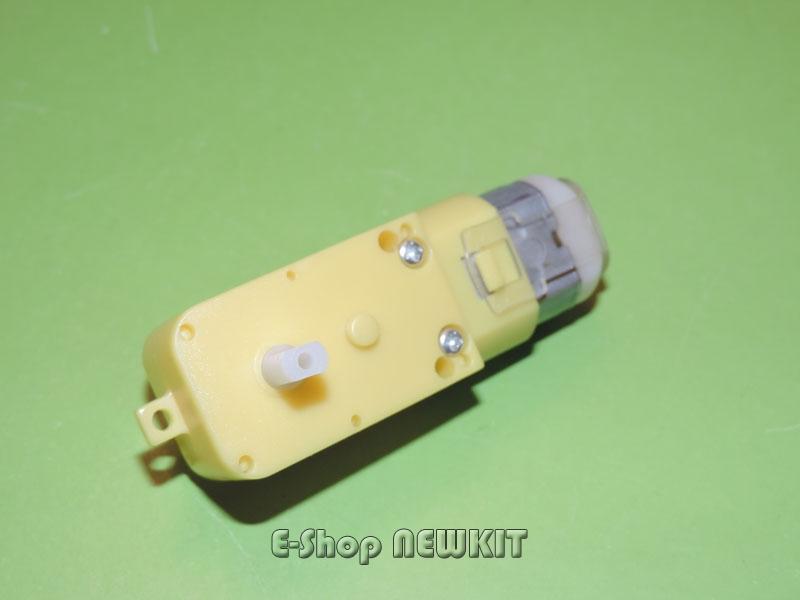

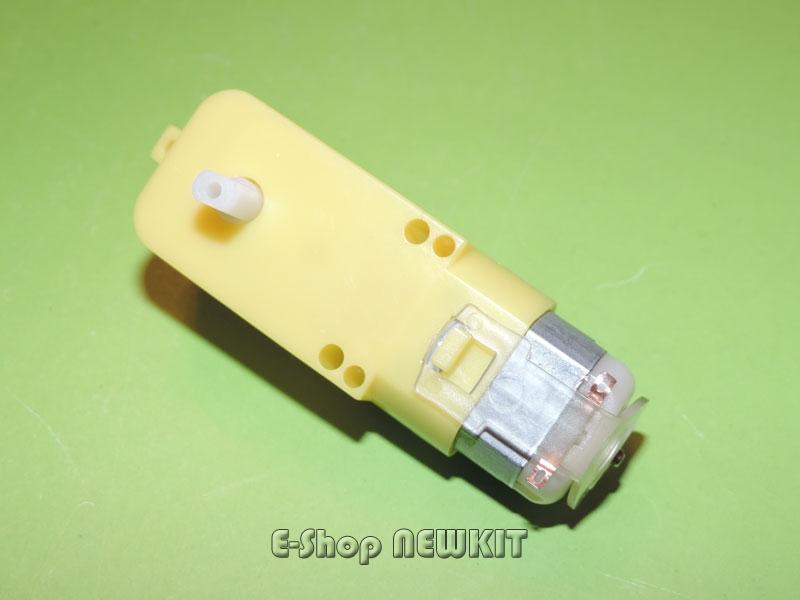

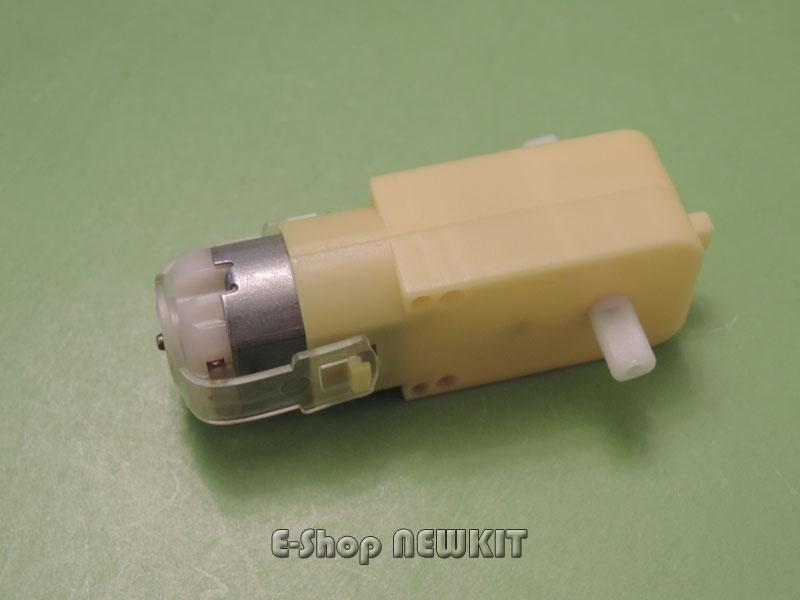

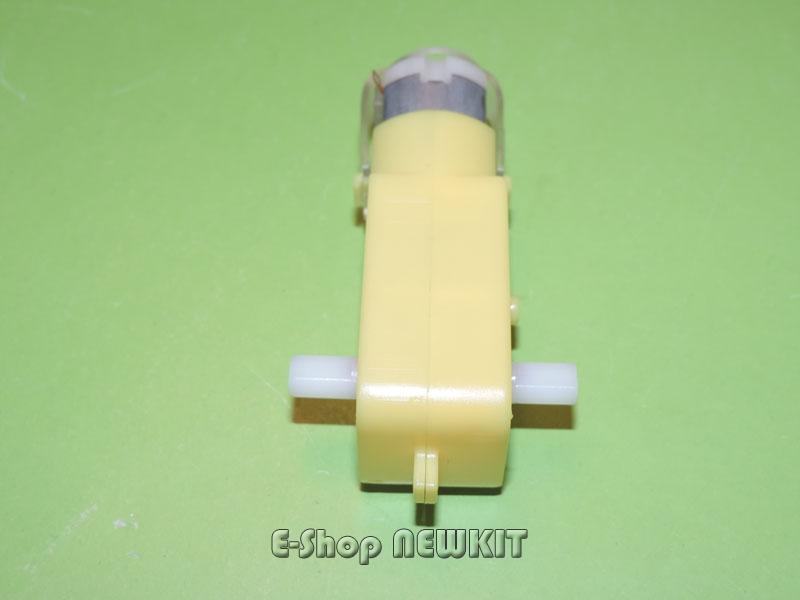

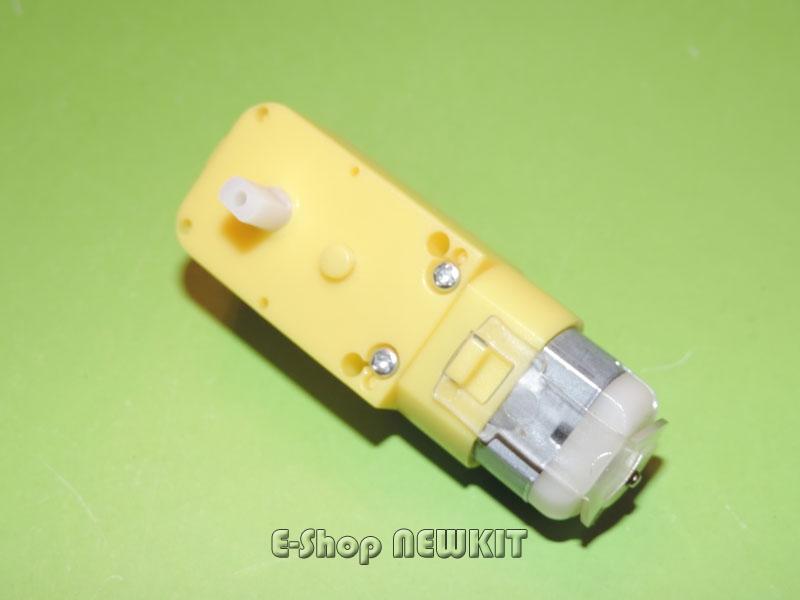

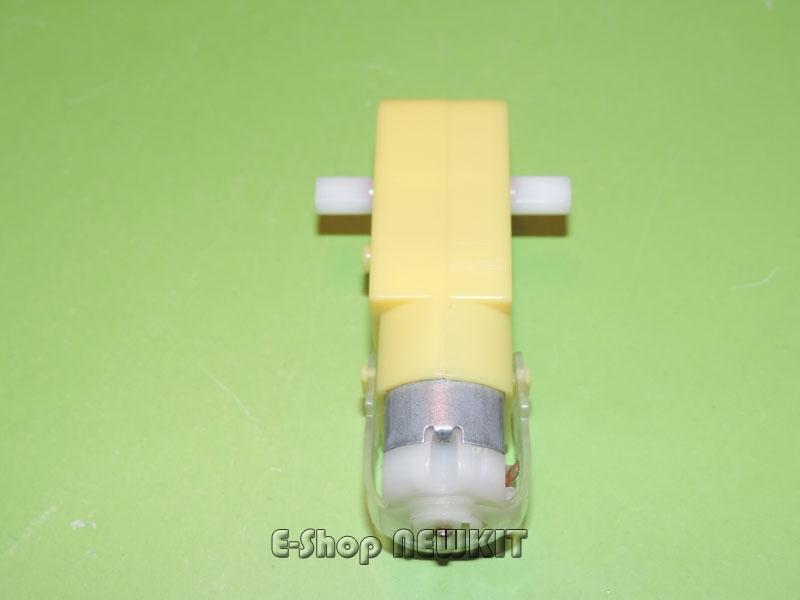

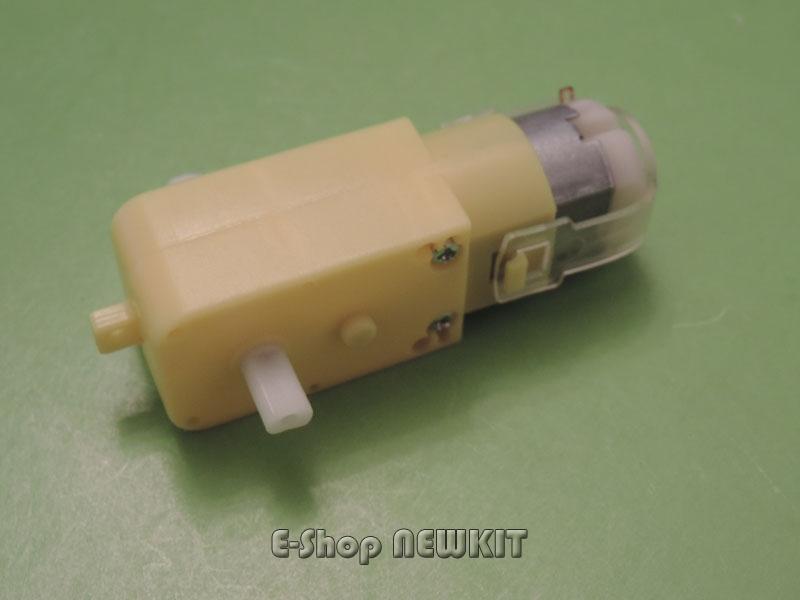

DC Geared Motor 130 Dual Shaft w/ Yellow Gear Box 3-6VDC
Dual shaft DC geared motor which gives good torque and rpm at lower voltages. This motor can run at approximately 375 rpm when driven by a single Li-Ion cell. It is most suitable for light weight robot running on small voltage. Out of its two shafts one shaft can be connected to wheel, other can be connected to the position encoder.
Applications
- DIY Projects
- Battery-operated toys
- Disk drives Steel rolling mills Paper
- Machines Medical equipment
- Radio-controlled aircraft
- Automobiles Drive systems Positioning
- Industrial and consumer actuators Winches Robotics Mixers
- Robotic projects
Features
- Rated Voltage: 5.0V DC
- Working Voltage: 3.0V - 6.0V DC
- Current: (No load) 3V-150mA , 6V-200mA
- Speed: (No load) 3V-90rpm±10% , 6V-200rpm±10%
- Torque: max. 0.8kg/cm
- Reduction ratios: 1:48
- Brush-type: Brush
- Body Size: 70mm x 37mm x 23mm
- Shaft Size: 8mm x 2mm diameter
- Weight: 17.5 grams
Suggestion accessories
The following wheel fit the motor shaft well: |
