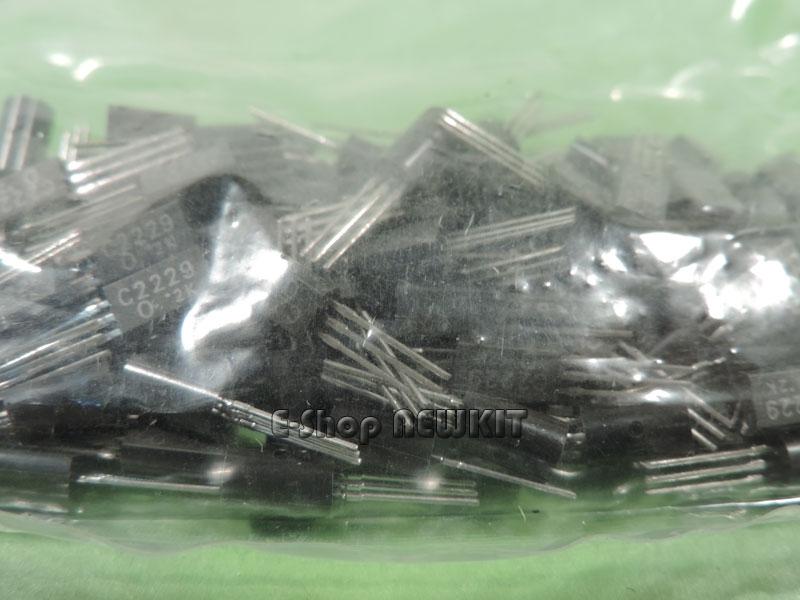

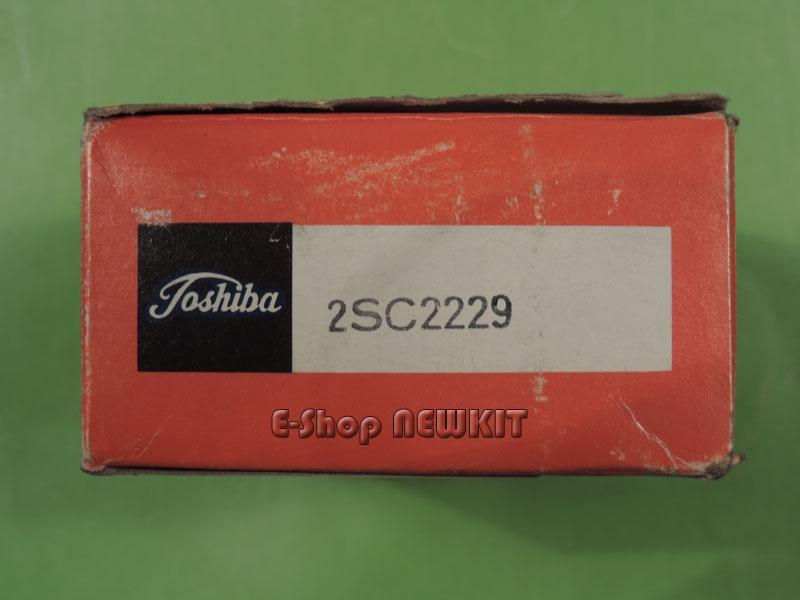

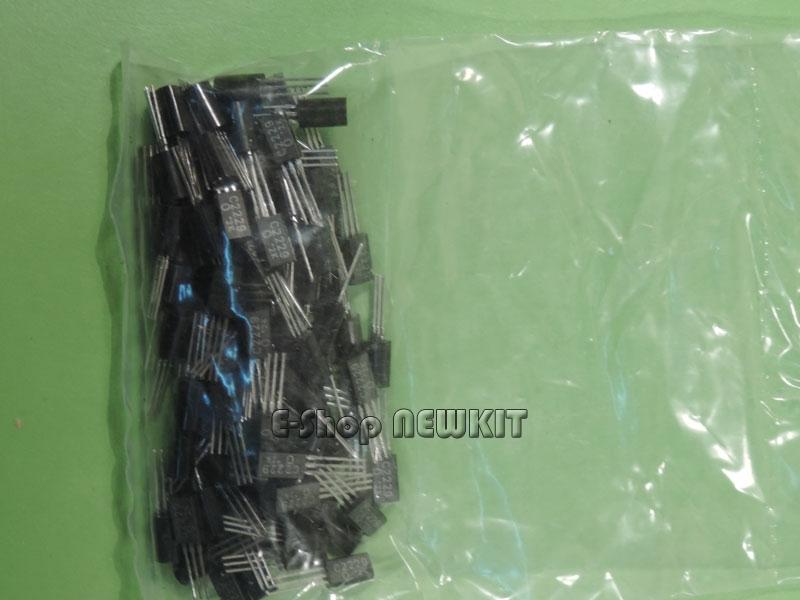

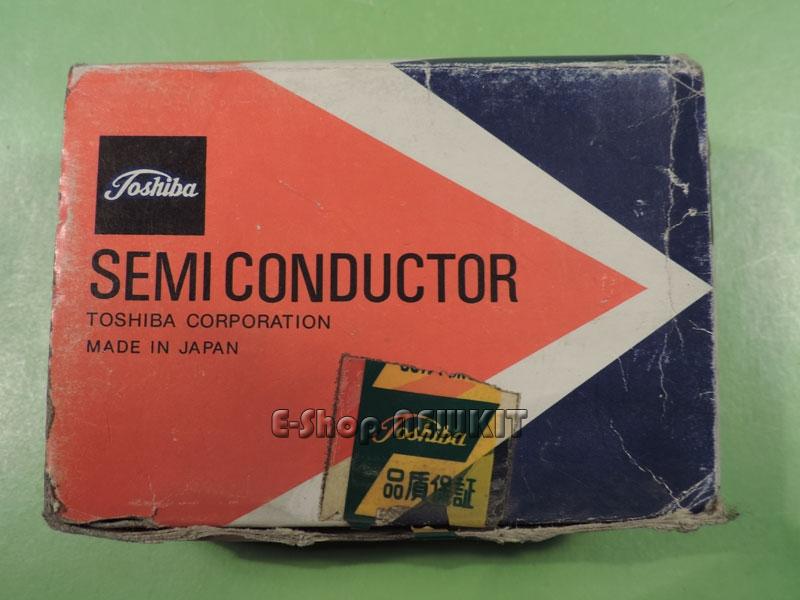

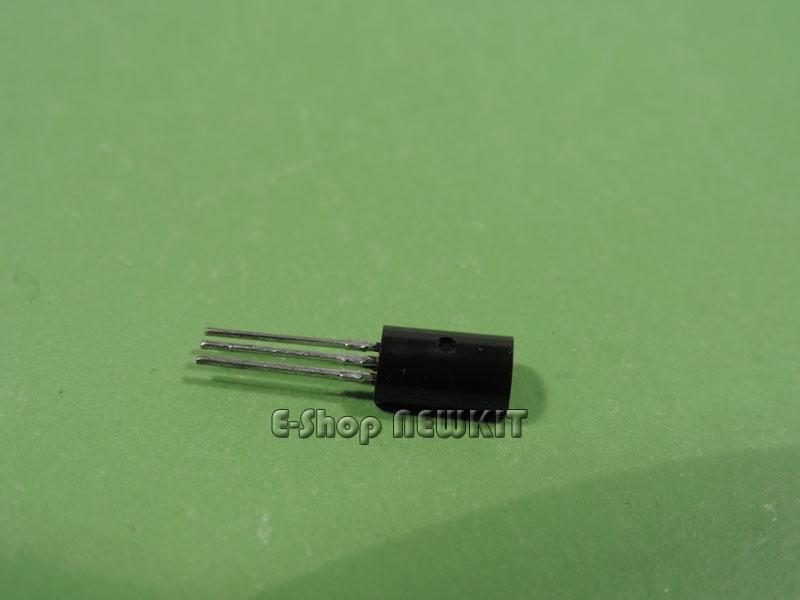

ترانزیستور توشیبا اصلی 2SC2229 ساخت ژاپن
بها مربوط به 1 عدد است
Black and White TV Video Output Applications
High-Voltage Switching Applications
Driver Stage Audio Amplifier Applications
TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT Process)
2SC2229
Black and White TV Video Output Applications
High-Voltage Switching Applications
Driver Stage Audio Amplifier Applications
• High breakdown voltage: VCEO = 150 V (min)
• Low output capacitance: Cob = 5.0 pF (max)
• High transition frequency: fT = 120 MHz (typ.)
Absolute Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Collector-base voltage VCBO 200 V
Collector-emitter voltage VCEO 150 V
Emitter-base voltage VEBO 5 V
Collector current IC 50 mA
Base current IB 20 mA
Collector power dissipation PC 800 mW
Junction temperature Tj 150 °C
Storage temperature range Tstg −55 to 150 °C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating
conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
