کنترل دور موتور با قابلیت چپ گرد و راست گرد

در رباتیک و صنایع مختلف صنعتی و غیر صنعتی در برخی مواقع نیاز هست تا سرعت موتور را کنترل کنید.

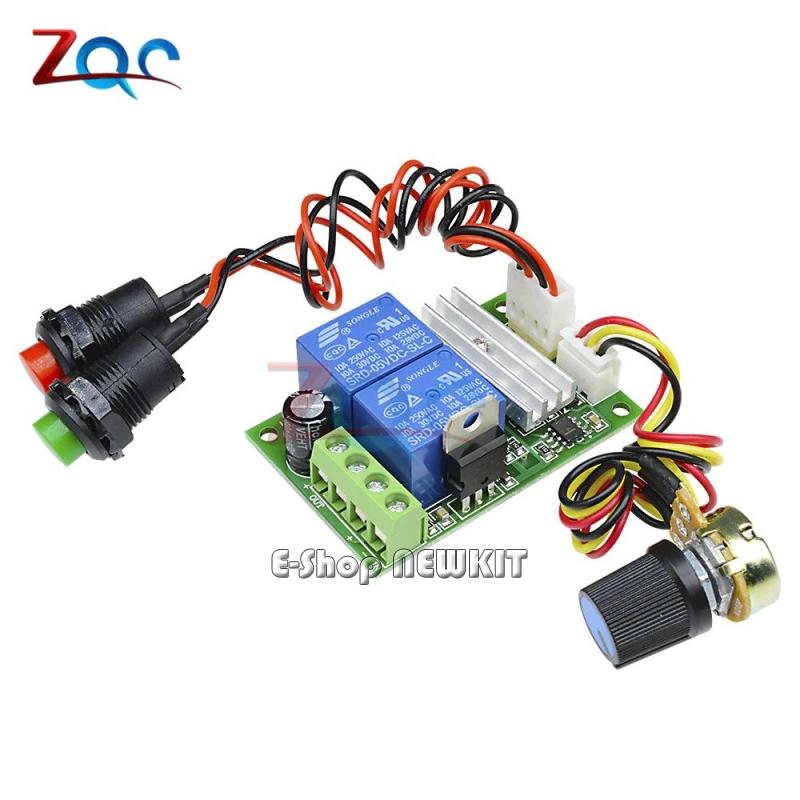

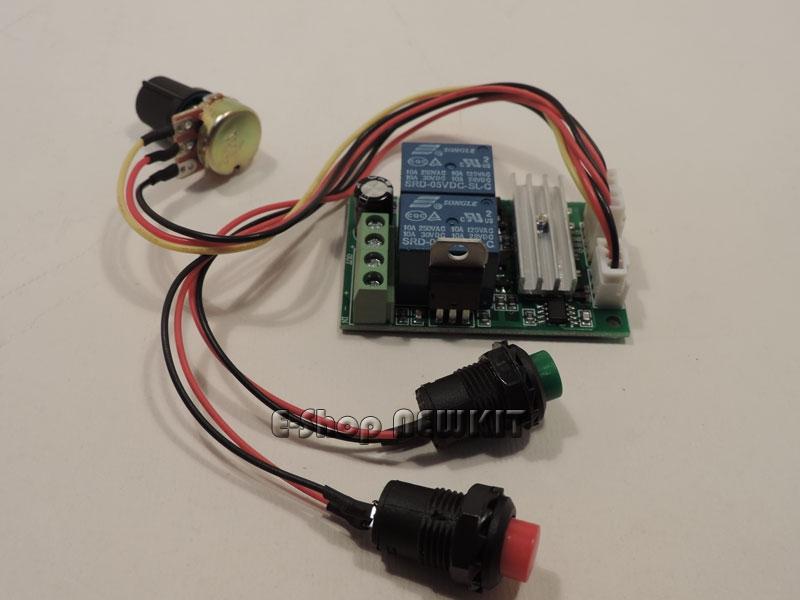

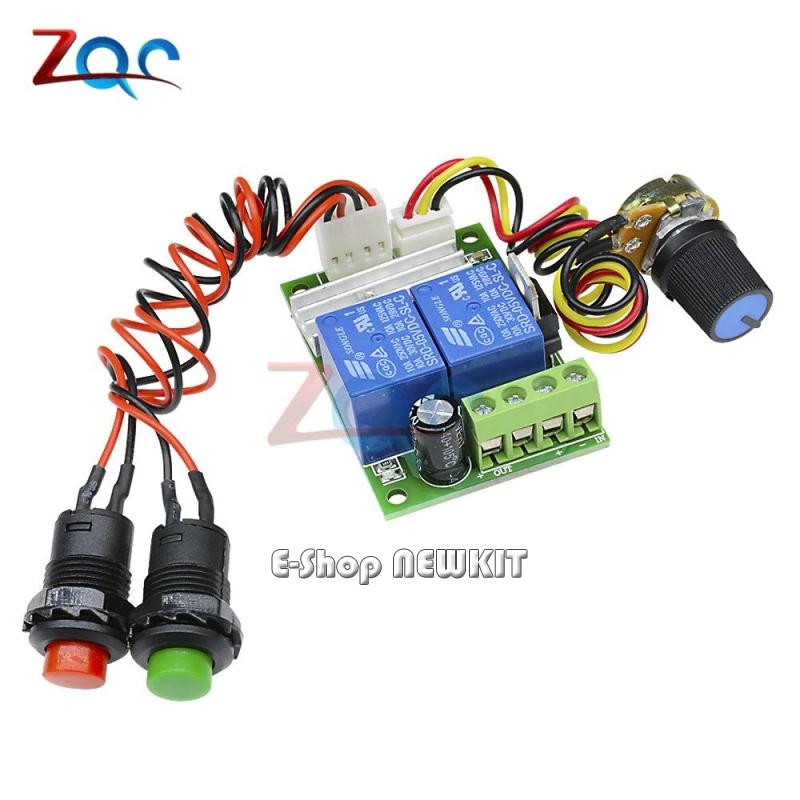

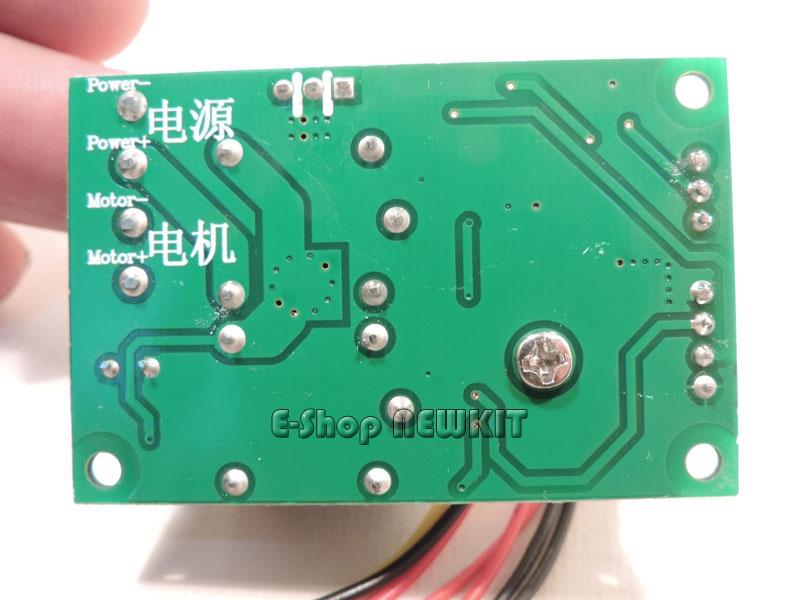

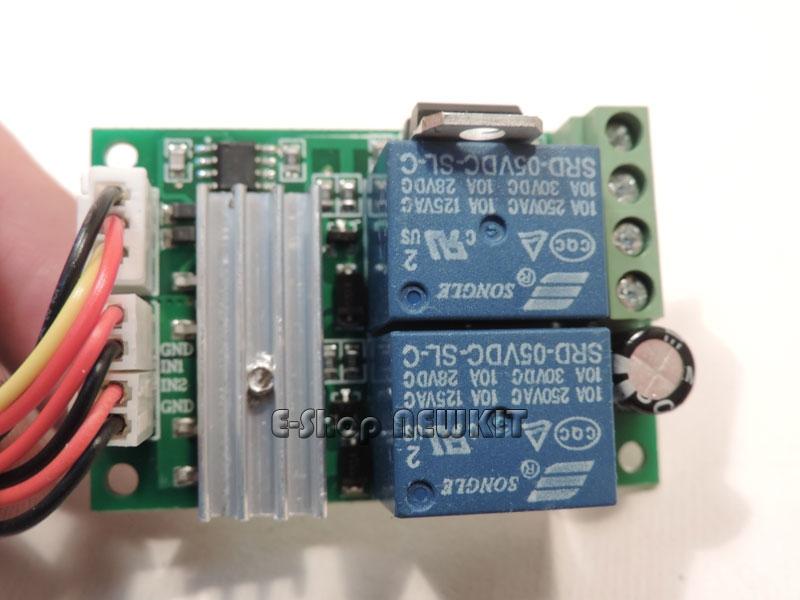

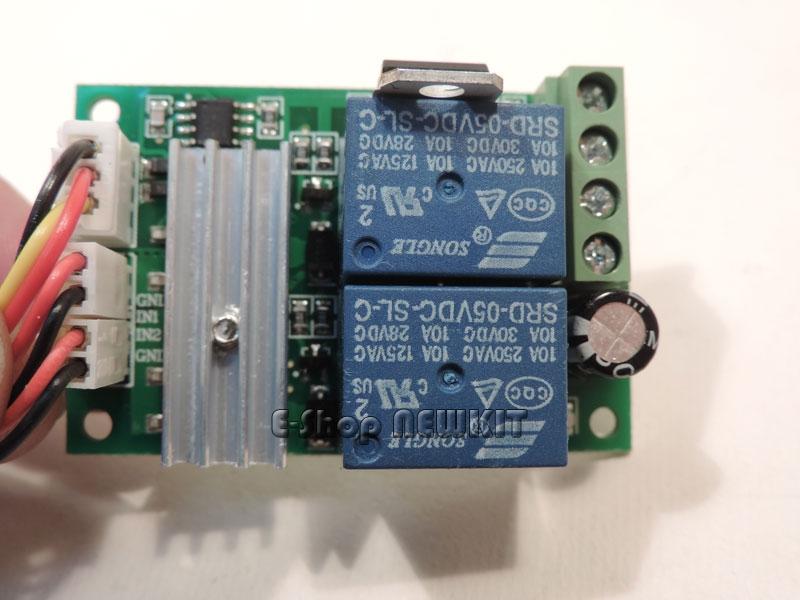

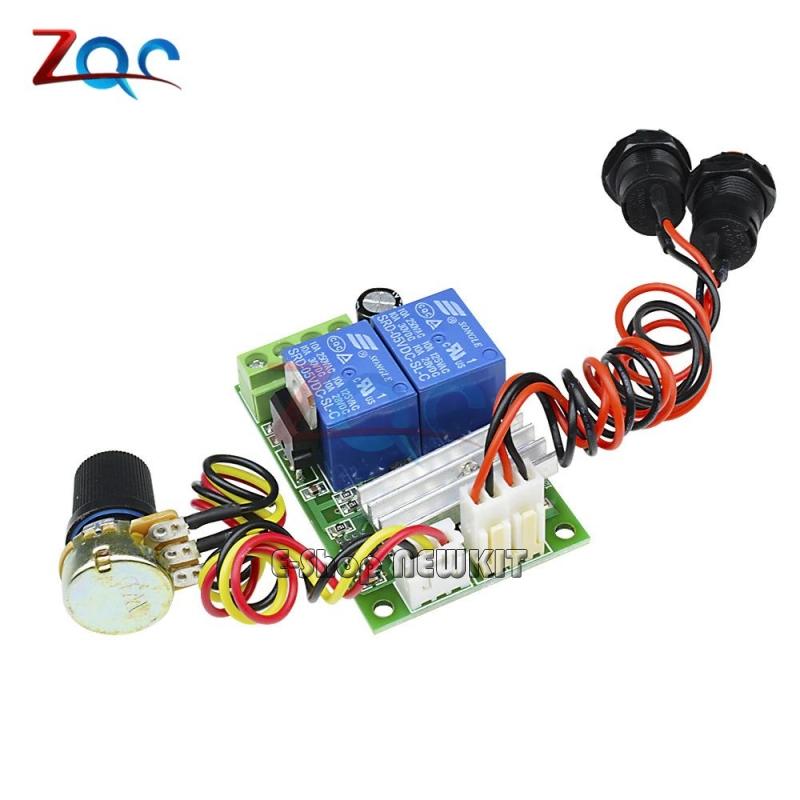

DC 6-24V 3A 21kHz PWM DC Motor Speed Regulator Controller Adjustable Speed Control Reversible Switch Relay Module 12V 24V 1203BS

Description:

1203BS DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM)

The input power range is DC 6-28V

Control the forward or reverse direction and the stop of DC motor by button switch.

Press the green button, the motor reverses rotates; and release the button, the motor stops

Press the red button, the motor clockwise rotates; and release the button, the motor stops

Feature:

Input supply voltage: 6V-24V DC

Duty Cycle adjustable: 0%-100%

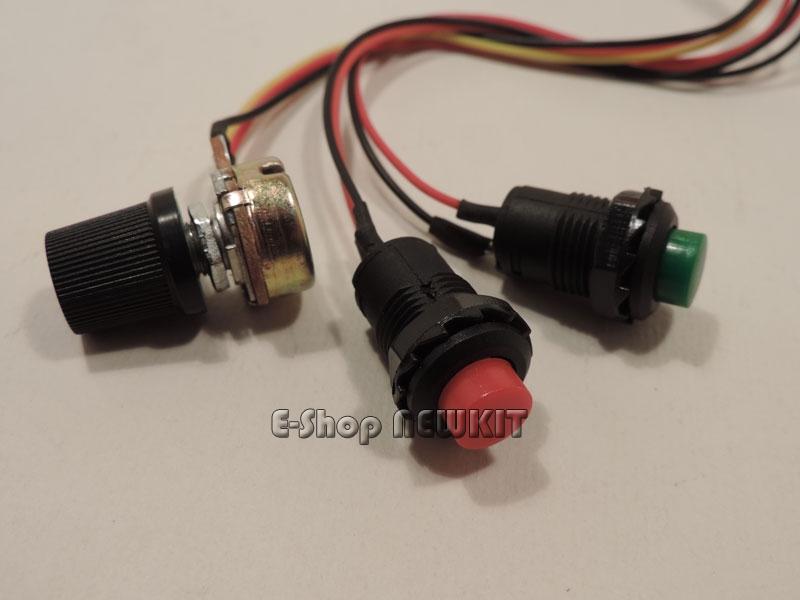

Button switches included

The maximum continuous output current: 3A

Product Dimensions: 57 * 37 *21mm

Package Included:

1PC*3A PWM Speed Controller
